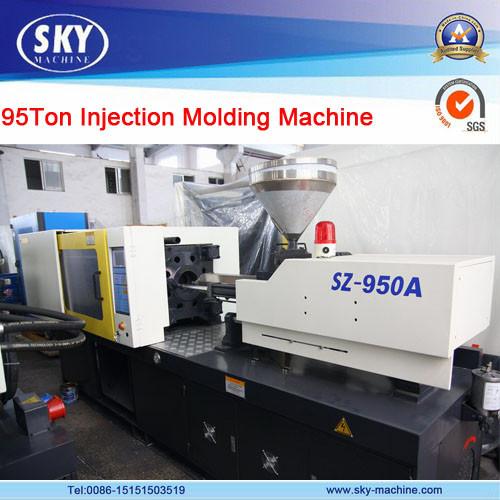

    95TON Injection Molding Machine

    Ask Lasest Price
    Brand Name : Sky Machine
    Certification : CE
    Model Number : SZ-950A
    Price : 18000USD/set
    Delivery Time : 30days
    Payment Terms : T/T;LC;DP,WESTUNION;PAYPAL
    Supply Ability : 300sets/year
    • Product Details
    • Company Profile

    95TON Injection Molding Machine

    95TON Injection Molding Machine

    Clamping Unit
    5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
    Mould height adjustment by hydraulic driven gear system with rapid and stable.
    Automatic mould height adjustment as per the setting clamping force(optional).

    Injection Unit
    BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
    Five_star Hydraulic motor with big torque,
    Ensure the excellent plastic molding condition.
    Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.

    Control Unit
    Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
    World famous electrical components and high quality circuit hardware with stable and reliable running.

    Technical Parameter:

    ItemUnitData
    Max. clamping forceKN950
    Max. opening distancemm340
    Space between tie barsmm360×360
    mold height(min-max)mm135-380
    Max. daylightmm720
    Ejector forceKN25.4
    Ejector strokemm85
    Ejector quantity5
    Screw diametermm303540
    Screw L/D ratioL/D24.52118.4
    Theoretical shot volumecm3113154201
    Plasticizing weight(PS)g103140183
    Injection pressureMpa249183140
    Theoretical injection rate(PS)g67.591.8120
    Plasticizing capacity(PS)g/s8.312.518
    Screw torqueN.m510
    Max. screw rotate speedr/min260
    Injection strokemm160
    Pump motor powerKW11
    Pump pressureMpa16
    Heating powerKW7.3
    Heating zone4
    Size(L×W×H)m4.25×1.2×1.8
    Net weightt3.2
    International designation950-280
